Product Details
Place of Origin: China
Brand Name: Huajing
Model Number: GJS-M3/RS-B
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 10.1-18.9USD/PC
Delivery Time: 1-4weeks
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Model.:
|
GJS-M3/RS-B
|
Material:
|
MPP
|
Cable Port:
|
4
|
Sealing:
|
Heat Shrinkable Tube /silicon Rubber
|
Size (mm):
|
Φ123×275
|
Cable Diameter (mm):
|
Φ7-Φ18
|
Capacity:
|
48 Cores
|
|
Model.:
|
GJS-M3/RS-B
|
|
Material:
|
MPP
|
|
Cable Port:
|
4
|
|
Sealing:
|
Heat Shrinkable Tube /silicon Rubber
|
|
Size (mm):
|
Φ123×275
|
|
Cable Diameter (mm):
|
Φ7-Φ18
|
|
Capacity:
|
48 Cores
|
Application:

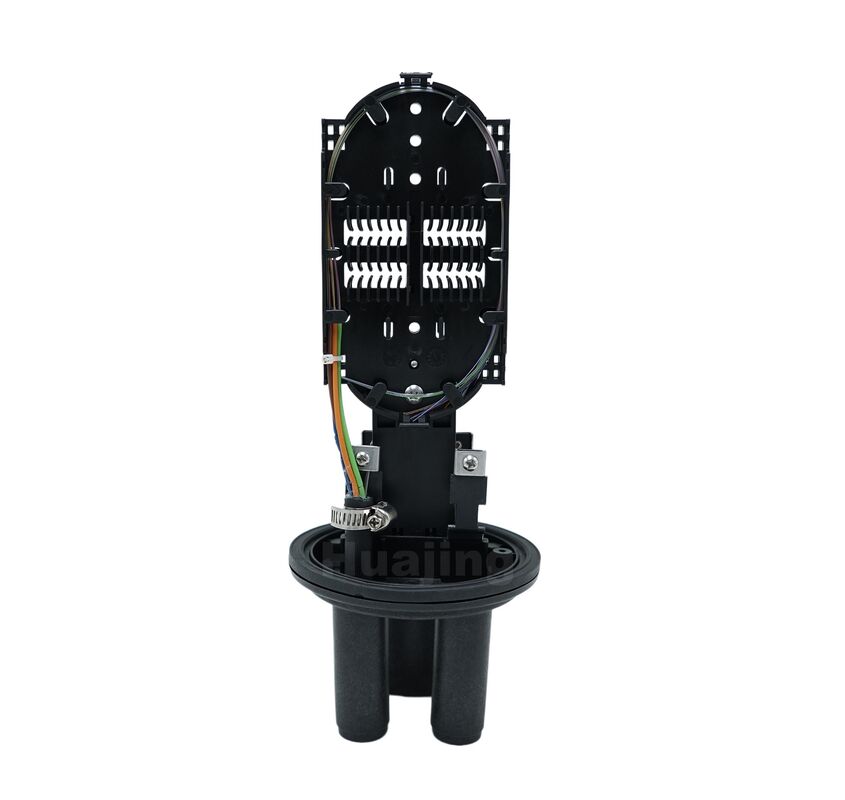

This product is used for optical splicing or direct connection during optical fiber transmission process, and provides joint connection protection.
Feature:
Technical Index:
Specification:
| Parameter | Packing Detail | ||
| Size(mm): W*D*H(mm) | Φ123×275 | Carton size(mm) | 620×420×630/16pcs |
| Weight(Kg) | 2 | CBM(m³) | 0.17 |
| Cable port | 1 oval, 2 round ports | Gross weight(Kg) | |
| Cable diameter(mm) | Φ7-Φ18 | Others | |
| Tray capacity | 24(single core) | ||
| Max tray number | 2 | Fiber storage box | Plastic box |
| Core capacity | 48(single core) | Installation | wall mounting(standard) |
| Sealing type | Heat shrinkable tube&Silicon rubber | pole mounting(optional) | |
