Product Details
Place of Origin: China
Brand Name: Huajing
Model Number: GJS-M3/JF
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 10.1-18.9USD/PC
Delivery Time: 1-4weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
|
Model.:
|
GJS-M3/JF
|
Material:
|
MPP
|
Cable Port:
|
4
|
Sealing Type:
|
Mechanical Seal
|
Size (mm):
|
Φ190×410
|
Cable Diameter (mm):
|
Φ7-Φ16
|
Capacity:
|
96 Cores
|
|
Model.:
|
GJS-M3/JF
|
|
Material:
|
MPP
|
|
Cable Port:
|
4
|
|
Sealing Type:
|
Mechanical Seal
|
|
Size (mm):
|
Φ190×410
|
|
Cable Diameter (mm):
|
Φ7-Φ16
|
|
Capacity:
|
96 Cores
|
Application:

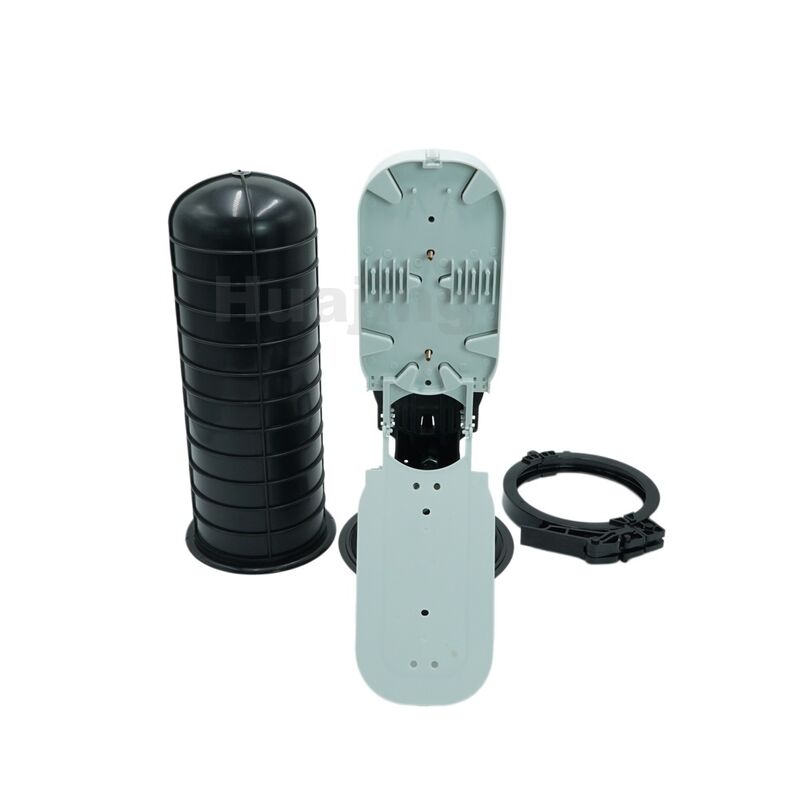

This product is used for optical splicing or direct connection during optical fiber transmission process, and provides joint connection protection.
Feature:
Technical Index:
Specification:
| Parameter | Packing Detail | ||
| Size(mm): W*D*H(mm) | Φ190×410 | Carton size(mm) | 550×450×480/6pcs |
| Weight(Kg) | 2 | CBM(m³) | 0.119 |
| Cable port | 4 | Gross weight(Kg) | 13.3 |
| Cable diameter(mm) | Φ7-Φ16 | Others | |
| Tray capacity | 24(single core) | ||
| Max tray number | 4 | Fiber storage box | Plastic box |
| Core capacity | 96(single core) | Installation | wall mounting(standard) |
| Sealing type | Mechanical seal＆silicon rubber | pole mounting(optional) | |
