Product Details
Place of Origin: China
Brand Name: Huajing
Model Number: GJS-M9/JFT-BS
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 19.9-28.6USD/PC
Delivery Time: 1-4weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
|
Model.:
|
GJS-M9/JFT-BS
|
Material:
|
MPP
|
Cable Port:
|
9
|
Sealing Type:
|
Heat Shrinkable Tube&Silicon Rubber
|
Size:
|
Φ325×390mm
|
Cable Diameter:
|
Φ7-Φ26mm
|
Capacity:
|
288，288，432，432 Cores
|
|
Model.:
|
GJS-M9/JFT-BS
|
|
Material:
|
MPP
|
|
Cable Port:
|
9
|
|
Sealing Type:
|
Heat Shrinkable Tube&Silicon Rubber
|
|
Size:
|
Φ325×390mm
|
|
Cable Diameter:
|
Φ7-Φ26mm
|
|
Capacity:
|
288，288，432，432 Cores
|
Application:

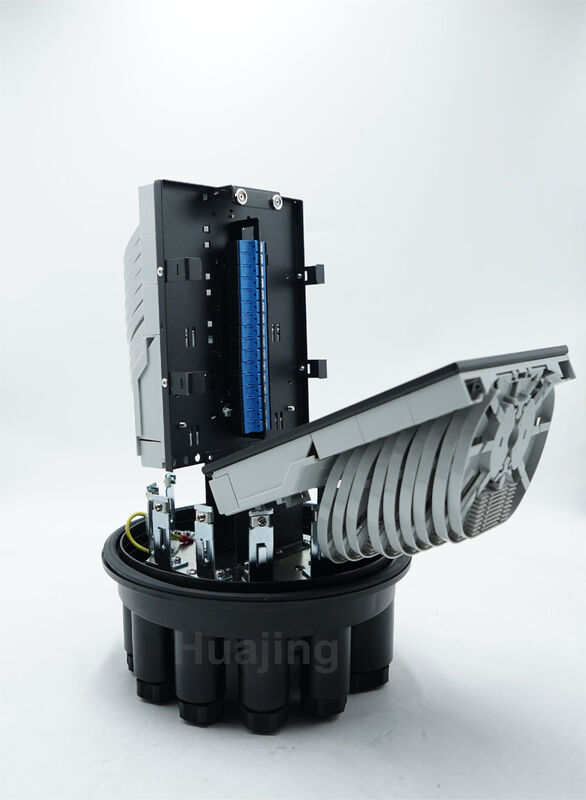

This product is used for optical cable direct connection during optical fiber transmission process, and provides joint connection protection.
Feature:
Technical Index:
Specification:
| Parameter | Packing Detail | ||
| Size(mm): W*D*H(mm) | Φ325×390 | Carton size(mm) | 530×330×310/1pc |
| Weight(Kg) | 13 | CBM(m³) | 0.055 |
| Cable in/out | 9 | Gross weight(Kg) | 10.9 |
| Cable diameter(mm) | Φ7-Φ26 | Others | |
| Tray capacity | 8,16, 24, 12(single core) | ||
| Max tray number | 36,18, 18, 36 | Fiber storage box | metal box |
| Core capacity | 288,288,432,432(single core) | Installation | |
| Sealing type | Heat shrinkable tube&Silicon rubber | pole mounting (standard) | |
