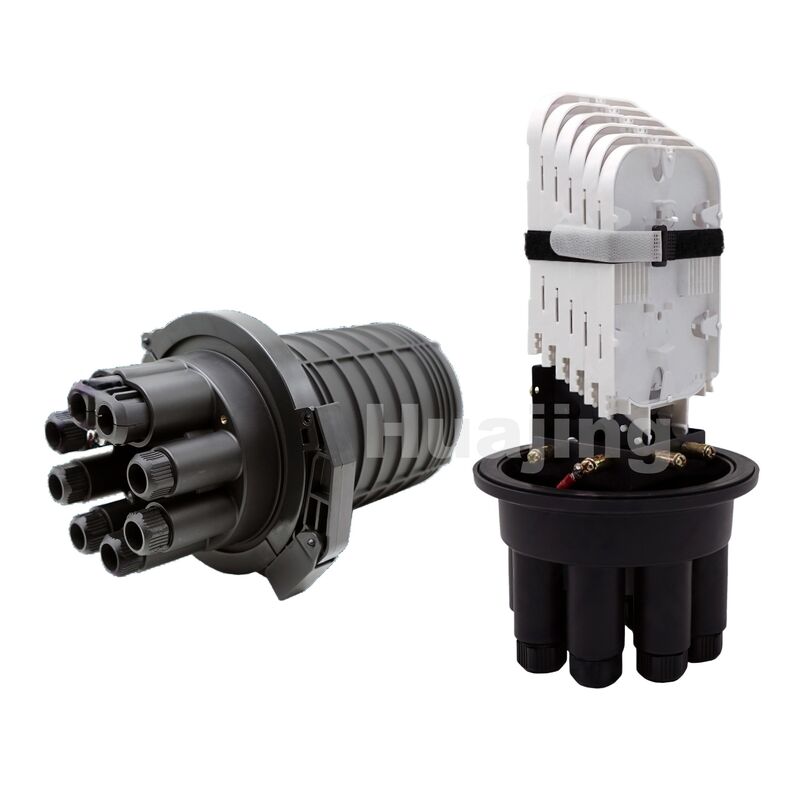

MPP Vertical Fiber Optic Splice Closure 144 Cores 7 Ports Mechanical Sealing IP68 Protection

Application:

This product is used for optical direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
2. There are 6 circular cable ports and 1 oval port; the oval port can be used for cable loop through or access 2 cables.
3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
4. The box body adopts heat shrinkable tube.
5. Can be used for pole mounting, wall mounting, and underground.

Technical Index:

• Fiber radius of curvature:≥40mm
• Optical disk additional loss:≤0.01dB
• Temperature Range: - 20℃ ~ + 60
•  Anti lateral pressure: ≥2000N / 10cm
• Shock resistance:≥20N.n
• Protection level:IP68
