Product Details
Place of Origin: China
Brand Name: Huajing
Model Number: GJS-M5/JFT-A (Splitting Type)
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 19.9-29.6USD/PC
Delivery Time: 1-4weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
|
Model.:
|
GJS-M5/JFT-A (Splitting Type)
|
Material:
|
MPP
|
Size:
|
Φ230×445mm
|
Cable Port:
|
5
|
Max Splitting:
|
1:16（2pcs) Or 1:32 (1pc)
|
Cable Diameter:
|
Φ7-Φ18mm
|
Capacity:
|
120 Or 96 Cores
|
Sealing Type:
|
Mechanical Sealing
|
|
Model.:
|
GJS-M5/JFT-A (Splitting Type)
|
|
Material:
|
MPP
|
|
Size:
|
Φ230×445mm
|
|
Cable Port:
|
5
|
|
Max Splitting:
|
1:16（2pcs) Or 1:32 (1pc)
|
|
Cable Diameter:
|
Φ7-Φ18mm
|
|
Capacity:
|
120 Or 96 Cores
|
|
Sealing Type:
|
Mechanical Sealing
|
Application:

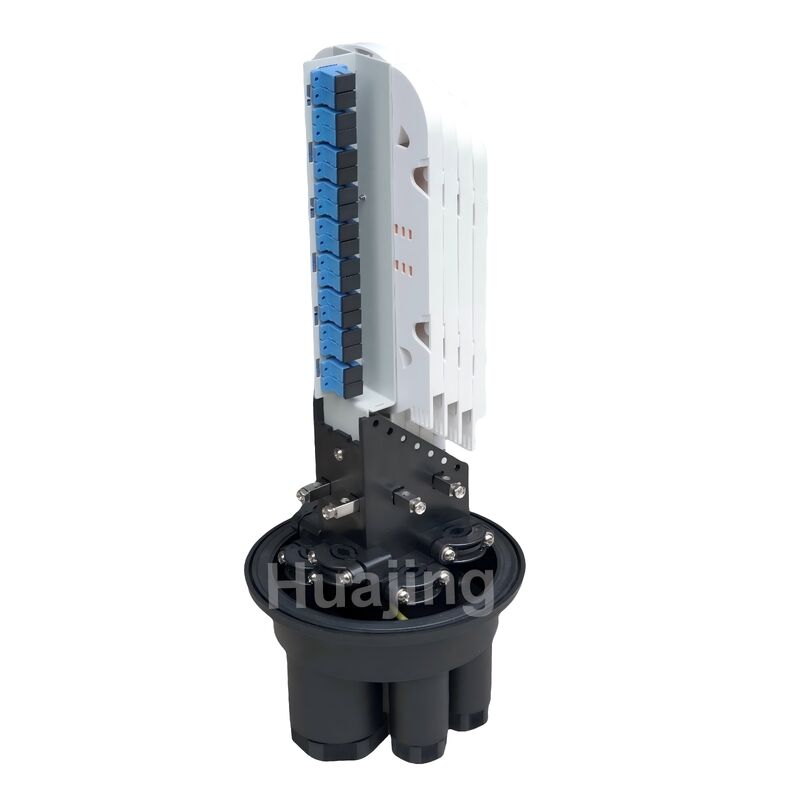

This product is used for optical splitting or direct connection during optical fiber transmission process, and provides joint connection protection.
Feature:
Technical Index:
Specification:
| Parameter | Packing Detail | ||
| Size(mm): W*D*H(mm) | Φ230×440 | Carton size(mm) | 540×485×465/4pcs |
| weight(Kg) | 3.1 | CBM(m³) | 0.12 |
| cable port | 5 | Gross weight(Kg) | 14 |
| Cable diameter(mm) | Φ7-Φ25 | Others | |
| Tray capacity | 24(single core) | ||
| Max tray number | 4 | ||
| Core capacity | 120 or 96(single core) | Installation | wall mounting(optional) |
| Max splitting | 1:16(2 pcs) or 1:32 (1 pc) | pole mounting(standard) | |
| Sealing type | Heat shrinkable tube&Silicon rubber | ||
