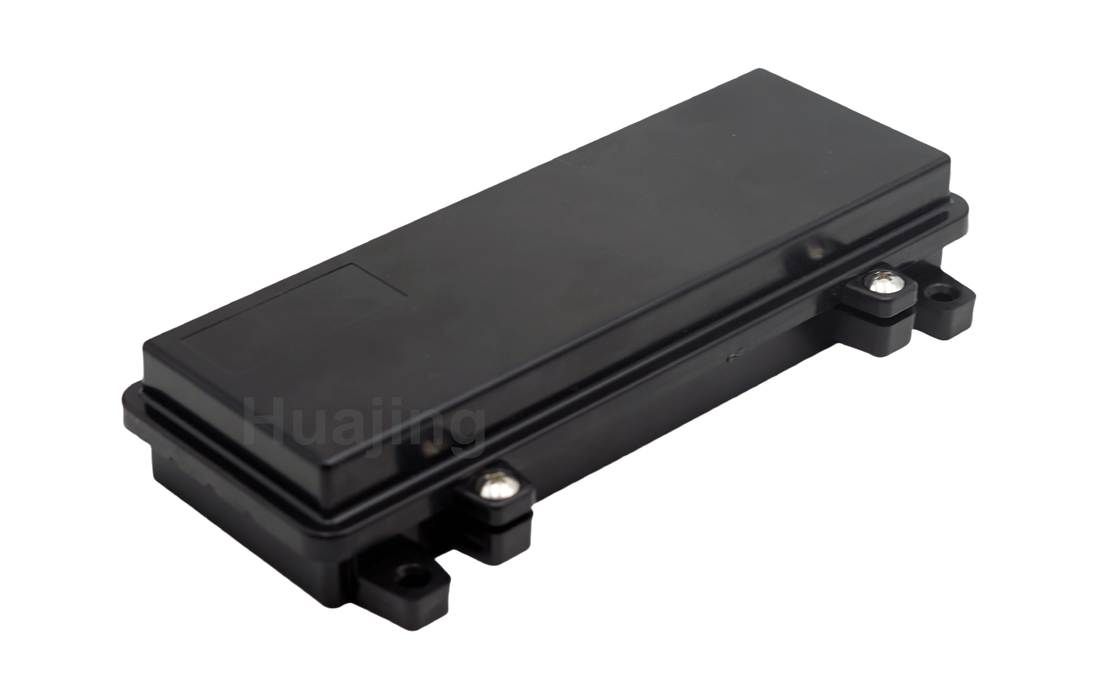

FTTH Fiber Optical Distribution 1x2 Splitting Box

Product Details

Place of Origin: China, Chengdu

Brand Name: Huajing

Model Number: FDB1*2 splitting box

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: 10.5-21.5USD/PC

Delivery Time: 1-4weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Chat now
Highlight:

FTTH fiber optical distribution box

,

1x2 fiber splitting box

,

FTTH splitter box with warranty

Model.:
FDB1*2 Splitting Box
Material:
ABS/PC
Size:
85*187*32.5mm
Cable In/out:
1/2
Cable Diameter:
Φ3 Or 2x3mm Drop Cable
Max Splitting:
PLC 1:2(1pcs)
Adapter:
SC(single Core)
Model.:
FDB1*2 Splitting Box
Material:
ABS/PC
Size:
85*187*32.5mm
Cable In/out:
1/2
Cable Diameter:
Φ3 Or 2x3mm Drop Cable
Max Splitting:
PLC 1:2(1pcs)
Adapter:
SC(single Core)
FTTH Fiber Optical Distribution 1x2 Splitting Box
Application:

This product can realize the optical splitting of the optical cable, which is suitable for terminal access on the user side.



Product Features:
  1.  The box is made of high-quality, impact-resistant plastics;

  2. Can install a 1:2 PLC splitter;

  3. Anti-UV, anti-impact, waterproof;Wall mounting;

  4. The cable ports are specials slots, which can fix theincoming/outgoing cables;

  5. The pigtail output and the optic splitting are in two independent area, which is easy to operate and maintain.



Performance Index:

●splice tray additional loss:≤0.01dB

●working temperature: - 20℃ ~ + 60℃

●side pressure: ≥2000N / 10 cm

●impact resistance:≥20N.m

●protective level: IP54



Technical Specifications:
Model. FDB-12
Size(mm) 85*187*32.5
Weight (kg) 0.145
Cable in / out 1 / 2
Cable diameter Φ3 or 2x3mm drop cable
Adapter SC
Max splitting 1 : 2
