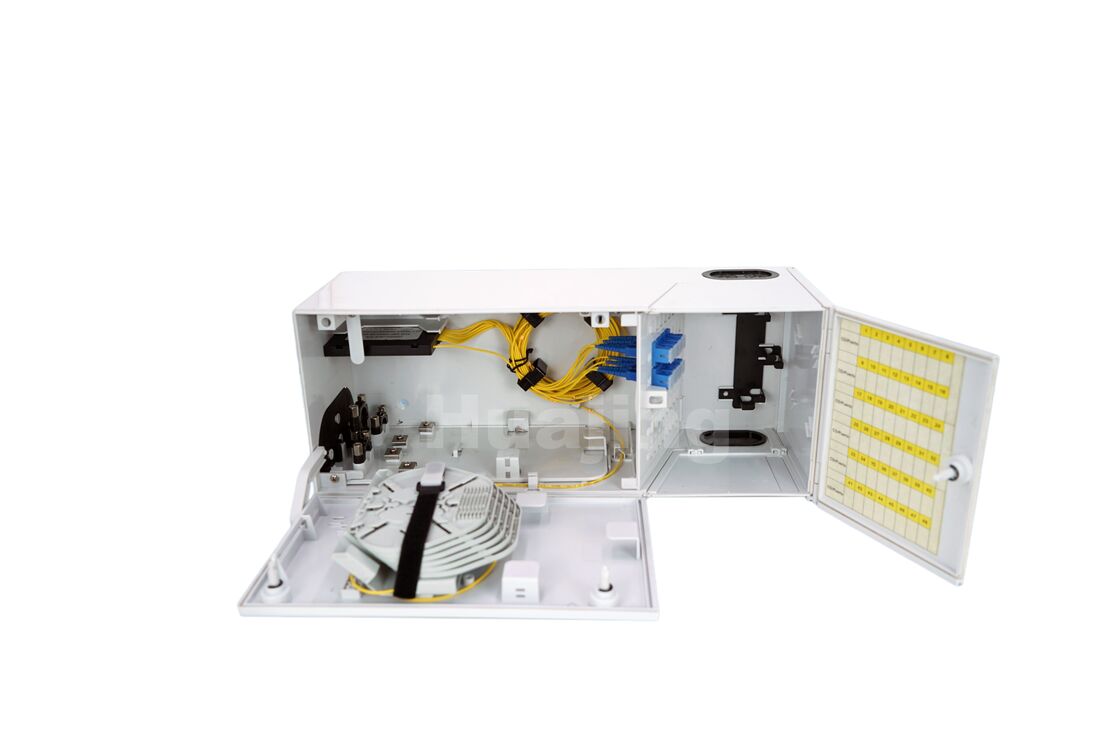

48 Cores Fiber Optic Splitting Distribution Box

This product integrates fusion splicing, optical splitting, and wiring functions, enabling direct-through and branching of optical cables. It is suitable for terminal access at user ends and for wiring connections with optical communication equipment. The fiber splice tray facilitates the storage and protective connection of optical cables and patch cords, while an adapter uses optical patch cords to extract optical signals, fulfilling optical wiring requirements. Alternatively, it can be fused directly with incoming optical cables to achieve direct-through functionality, meeting the demands of traditional transmission network projects.

1. The product is made of high-quality plastic and exhibits excellent impact resistance and anti-aging properties.
2. It features an independent welding flip disk and a parking area, ensuring clearer wiring lines with reduced crossing risks.
3. The cable inlet allows for cable loop-through.
4. Two hinged door panels and a dedicated key are configured to isolate the optical cable splicing zone from the cable exit zone. When the splicing zone door panel is opened, it forms an operational platform, facilitating operation while maximizing space utilization. The cable exit zone door panel can be opened on both the front and right sides to enable vertical cable discharge.Performance Index:

• Fiber curvature radius: ≥30mm
• Additional loss of optical fiber: ≤ 0.01dB
• Temperature range: -40℃ ~ +60℃
• Anti-side pressure: ≥2000N / 10cm
• Impact resistance: 20N.m or more
• Protection class: IP65
