Name: Compact FTTH Optical Fiber Panel With 4 SC Adapter Interfaces
Brand: Chengdu Huajing Communication Equipment Co., Ltd.
SKU: FTB104B-S3
Price: 3.60 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Huajing

Model Number: FTB104B-S3

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: 1.6-6.5USD/PC

Delivery Time: 1-4weeks

Payment Terms: T/T,D/A,L/C,D/P,Western Union

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Compact Optical Fiber Panel, 4 SC Adapter Optical Fiber Panel, FTTH Panel 86x86x34mm


Model.:	FTB104B-S3	Material:	ABS Or Fire Retardant ABS
Color:	White	Size (mm):	868634
Cable Inlet /outlet:	6/4	Adapter:	SC (4 Pcs)
Installation:	Indoor On The Wall

Model.:	FTB104B-S3
Material:	ABS Or Fire Retardant ABS
Color:	White
Size (mm):	868634
Cable Inlet /outlet:	6/4
Adapter:	SC (4 Pcs)
Installation:	Indoor On The Wall

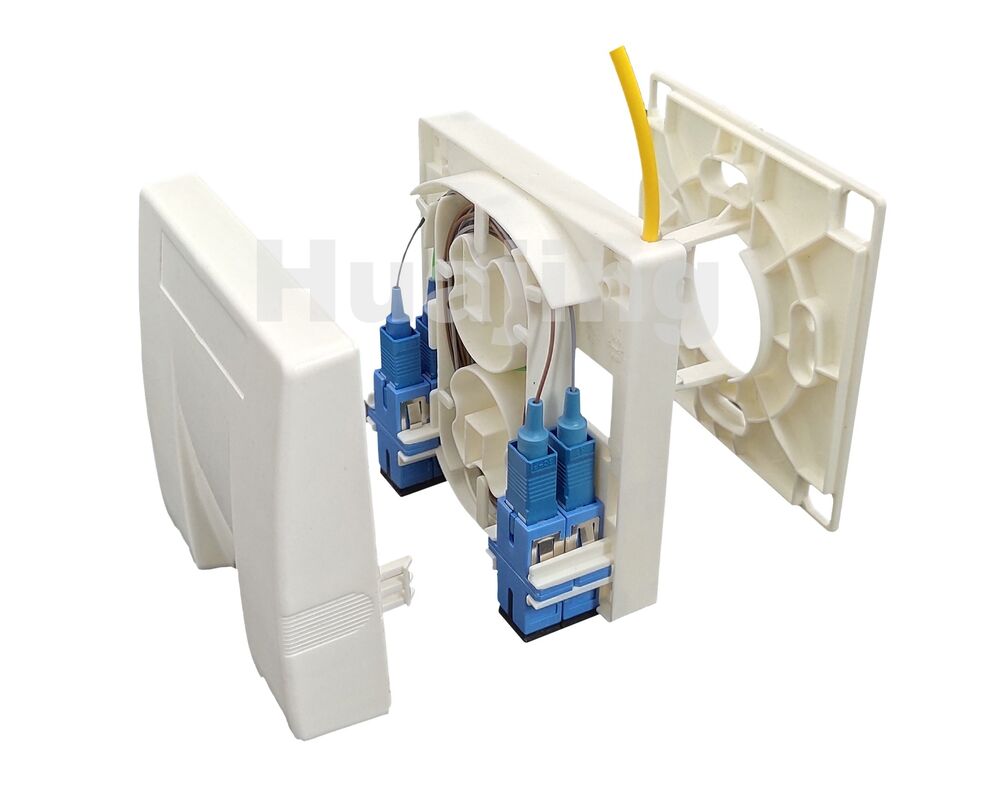

Compact FTTH Optical Fiber Panel With 4 SC Adapter Interfaces

Application:

The optical fiber panel serves as the final termination point for FTTH installations. It is widely used in both residential and workplace environments.

Key Features:

Material: ABS fire retardant or non-retardant options available.
4 SC simplex or LC duplex adapter slots are set at the output end, and is equipped with dust plugs as required, which meets the direct splicing of 1 ～ 4 single-core pigtails;
Three-layer partition structure of the box makes 3 clear-cut area for cable entry, fiber pigtail storage and splicing, which avoids crossing lines.
Multiple cable entry holes on the left, right and upper part of the box meet the flexible and variable routing mode in the construction field;
Indoor wall mounting.

Technical Specifications:

Parameters		Packing Information
Model.	FTB104B-S3	Outer carton(mm)	500×390×320/160pcs
Size(mm)	868634	CBM(m³)	0.063
Weight(Kg)	0.076	Gross weight(Kg)	13.8
inlet /outlet	6/4	Accessories
Cable diameter	Φ3 or 2×3mm drop cable	M4×25mm screw	2pcs
Max core capacity	4(single core)	Expansion screw	2pcs

Compact FTTH Optical Fiber Panel With 4 SC Adapter Interfaces
