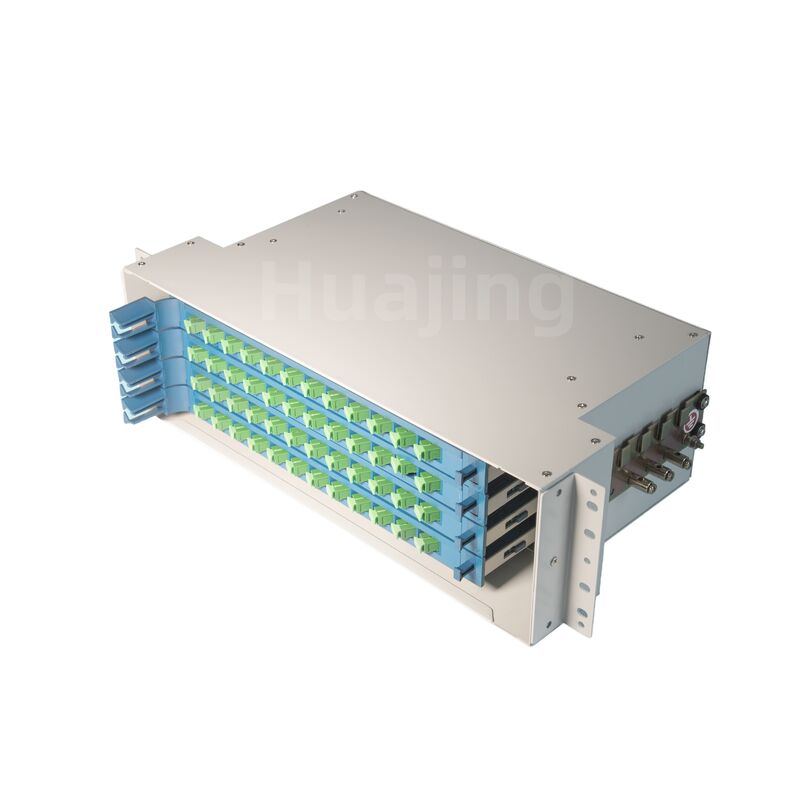

Cold Rolled Steel ODF Optical Distribution Unit Supporting SC FC ST LC Adapters

Application:

This product is designed for the fiber optic communication equipment room. It has the function of cable fixation and protection, cable terminating, wiring, distribution and protection of fiber cores and pigtails. It can be assembled as an optical distribution frame, or in multiplex distribution frame together with digital distribution unit and audio distribution unit.

Feature:

1. Outer frame is made of cold-rolled steel sheet,
2. 19'' standard installation with good universality.
3. Full modular design and frontal operation.
4. It integrates fiber splicing, storage and wiring.
5. Each splicing tray can be pull out seperately, which enable operation in or out of the box.
6. Support the multiple adapters: SC, FC, ST, LC, etc.

Technical index:

• Working wavelength: 850nm 1310nm 1550nm
• Connector loss (Including interchangeability and repetition): ≤0.5dB
• Return loss: APC movable connector≥60dB, UPC movable connector≥50dB, PC movable connector≥45dB.
• Pull and insertion service life: no mechanical damage after 500 times of pulling and inserting repeatedly. Additional loss of insertion ≤0.2dB, return loss≤5dB
• Withstand voltage between high voltage protective grounding device and frame≥3000V(D.C)/1min, No breakdown, No flash-over.
• Insulation resistance between high voltage protective grounding device and frame≥1000MΩ/500V(D.C).
