Product Details
Place of Origin: China
Brand Name: Huajing

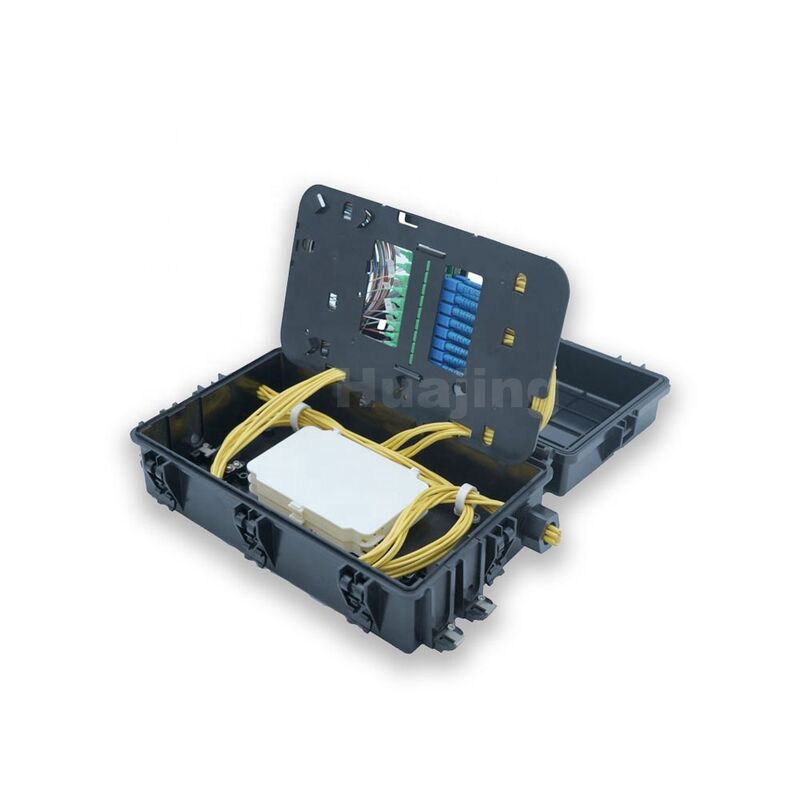

Model Number: GJS(06)-A
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: 10.2-17.8
Delivery Time: 1-4weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
|
Material:
|
ABS
|
Dimensions:
|
355（310）*215*100mm
|
Weight:
|
1.7 Kg
|
Cable Diamter:
|
Φ7~Φ16mm
|
Splice Capacity:
|
72 Cores (single Core)
|
Cable Port:
|
4 In / 16 Out
|
Max Splitting:
|
1:16(1pc） 1:8(2pcs)
|
Mounting Options:
|
Pole, Wall, And Underground
|
|
Material:
|
ABS
|
|
Dimensions:
|
355（310）*215*100mm
|
|
Weight:
|
1.7 Kg
|
|
Cable Diamter:
|
Φ7~Φ16mm
|
|
Splice Capacity:
|
72 Cores (single Core)
|
|
Cable Port:
|
4 In / 16 Out
|
|
Max Splitting:
|
1:16(1pc） 1:8(2pcs)
|
|
Mounting Options:
|
Pole, Wall, And Underground
|
Application:
The product can be applied in the straight line and branch line connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.
Features:
Techinical Index:
Specification:
| Parameter | Packing Detail | ||
| Model. | GJS(06)A | Carton Size(mm) | 540×380×520/8pcs |
| Size(mm) | 355(310)*215*100 | CBM(m³) | 0.107 |
| Weight(Kg) | 1.7 | Grossweight(Kg) | 15.2 |
| Cable in /out | 4 in / 2 out (for 16 pigtails) | ||
| Splice tray capacity＆quantity | 24(single core)＆3pcs | ||
| Cable diameter | Φ7~Φ16mm | ||
| Core capacity | 72(single core) | ||
| Max splitting | 1:16 (1pc) / 1:8 (2pcs) | ||
